Diagram

The diagram below shows the entities that make up the data warehouse model:

Orange denote unique keys

Blue denote entity relationships.

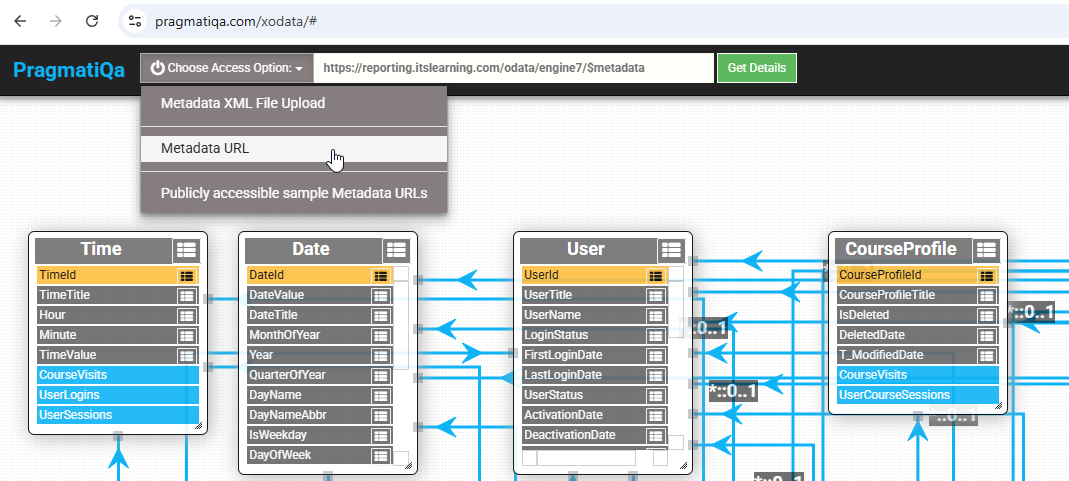

Use the following steps to generate a better readable version of above diagram:

In your browser go to http://pragmatiqa.com/xodata/#
For "Choose Access Option" select "Metadata URL"
Fill in the url of the full Data Warehouse model reference: https://reporting.itslearning.com/odata/engine7/$metadata
Click on the green button labeled "Get Details" to generate a diagram

Entities, Relationships and Use in itslearning

Below is a list of all entities including description, fields, relationships and overview of how/where they appear in itslearning. You can navigate from entity to entity through the relationship links.
